MV Disconnectors

Specials

EME disconnectors & cubicles portfolio

EME distinguishes itself in creating special disconnectors tailored to the customer's needs. Be sure to take a look at our portfolio for some examples!

Download brochure

Disconnectors for power electronics

BR990

Disconnectors for power electronics often need one, or a combination of special solutions; small interruption capacity, discharging with a resistor bypass, quick earthing device…

Equipment for safety applications

BR991

Disconnectors and panels with increased Performance Levels. A safety component that is part of a machine that must comply with laws such as e.g. The Machinery Regulation (EU) 2023/1230.

IC cubicles

EME disconnector cubicles portfolio

The EME disconnector boards type IC with built-in EME disconnectors are built entirely according to the customer's wishes. From a compact board with one separator to a complete circuit of your choice.

Download brochure

IC

BR201

The EME disconnector panels type IC with built-in EME disconnectors are built entirely according to the customer's wishes.

IC-MDI

BR981

One or more EME MDI pull disconnectors with manual control or insulated switch stick, built into a small polyester or stainless steel cabinet, for outdoor placement on a pole, wall or even on the floor next to the railway/tram line.

MI-COMP

BR076

This compact disconnector for indoor installation was developed by EME for applications where durability and robustness are required in addition to compactness.

Download brochure

MVI

BR091

The compact, durable and robust disconnector for indoor installation that is very suitable for higher current levels up to a minimum of 12,000A.

Download brochure

MVI

BR930

The standard execution of the family, designed for use in a broad DC and AC range.

MVI-CI

BR931

Invertor disconnector, with 2 fixed positions, which is widely used in bypass applications.

MVI-CIP

BR932

Disconnector-earthswitch combination in which the disconnector, in contrast to the MVI-CI in the 2nd position, is open and grounded.

MVI-CI3

BR933

MVI-CI with supplementary 0-position, thus a 3-position disconnector, available in 5 different configurations.

MVI-CIx

BR934

The MVI can also be implemented in multiple positions thanks to a well-thought-out system. A typical example of an application is a tap changer for transformers.

MSI

BR089

The standard disconnector for indoor installation with endurance class M1 (up to min. 2000 C-O).

Download brochure

MSI

BR910

The standard execution of the family, designed for use in a broad DC and AC range.

MSI-CIP

BR913

Disconnector-earthswitch combination in which the disconnector, in contrast to the MSI-CI in the 2nd position, is open and grounded.

MSI-CI

BR912

Invertor disconnector, with 2 fixed positions, which is widely used in bypass applications.

MSI-CI3

BR914

MSI-CI with supplementary 0-position, thus a 3-position disconnector, available in 5 different configurations.

MSI-TI

BR915

MSI with built-on, interlocked earth switch.

MI-UI

BR078

The single-pole disconnector for indoor installation. In addition to this standard version, a two-way switch with locking, special low-cost version, etc. has also been developed.

Download brochure

M(S)I-UI-LSL-ECO

BR923

Low-cost version of the M(S)I-UI-LSL, i.e. 2 M(S)I-UI-ECO disconnectors mounted on 1 frame, the one above the other as an invertor-switch with a mechanical interlock between both.

M(S)I-UI-Light

BR924

M(S)I-UI with motor drive L(ight). Complete integrated motor drive, available in several supply voltages, with a manual emergency control on the motor. (Standard execution right side.)

GP1-C1

BR926

Single pole on-load switch for indoor use for 12-17.5kV.

M(S)I-UI

BR920

The standard execution of the series of single-pole disconnectors, a manual operated isolator by means of a lever.

M(S)I-UI-ECO

BR921

Low-cost version of the standard M(S)I-UI where the same active parts are used with a cheaper frame and shaft parts.

M(S)I-UI-LSL

BR922

2 M(S)I-UI disconnectors mounted on 1 frame, the one above the other as an invertor-switch with a mechanical interlock between both.

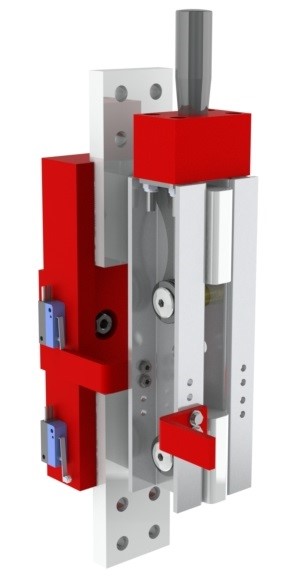

MDI / MDE

BR084

This simple pull disconnector for manual operation or with insulated switch stick has been specifically developed for tram and train applications.

Download brochure

IC-MDI

BR981

One or more EME MDI pull disconnectors with manual control or insulated switch stick, built into a small polyester or stainless steel cabinet, for outdoor placement on a pole, wall or even on the floor next to the railway/tram line.

MDI

BR940

The simple off-load disconnector for manual operation with insulated switch stick for indoor installation.

MDE

BR941

The simple off-load disconnector for manual operation with insulated switch stick for outdoor installation.

MTI

BR010

The EME grounding switch for indoor installation MTI is used in various MV applications as a discharger, safety interlock or power earther with inrush capacity.

Download brochure
